If you have ever dealt with pneumatic systems, hydraulic machines, automated plumbing, or industrial automation equipment, chances are very high that you have encountered a solenoid valve. A solenoid valve is the most popular electric component controlling fluid in any industry. It is an "electric switch" of liquid and gas—controlling the timing, direction, and way of fluid flow in the system. The most popular misunderstanding of the beginner level is usually associated with the flow paths basics, the mechanism of fluid moving inside the valve, the influence of the power supply on the flow state, and the reasons for using different valves for different applications.
In this beginner's guide, we will explain the basics of solenoid valve flow paths in clear non-engineering language. You will learn about basic valve structures, working principles and mechanisms, flow path types and selection tips, and gain a good basic idea about solenoid valve flow without any engineering calculations or complex formulas.
1. What is a solenoid valve? Why is the Flow Path Important?
A solenoid valve is an electromechanical device that converts electrical energy into mechanical energy to control the flow of fluid (gas, liquid, or air). Solenoid valve consists of two main elements: the electromagnetic solenoid coil and the valve body with internal fluid passages. Most of the times, beginners concentrate on electrical parameters like voltage and power, but the flow path is the core of valve functioning. It controls the inlet/outlet points and the direction of fluid and directly determines the working mode, application area, and efficiency of the valve.
90% of beginner issues could be avoided with the knowledge of flow path basics: normally open and normally closed valves, no reverse installation, valves vs. system pressure, and troubleshooting the most popular flow problems. In contrast to the manual mechanical valves, solenoid valves use electromagnetic drive to change the states of internal flow paths, providing a completely automatic and fast fluid control. That is why solenoid valves are so important for industrial automation, home appliances, and automobile equipment.
2 Main Characteristics Defining Flow Paths of a Solenoid
To understand flow paths, one should first know about the important internal elements controlling and blocking fluid movement. Five basic elements shape the flow path of any common solenoid valve:
2.1 Valve Body & Ports
The valve body is the case containing all the internal components. It has fixed fluid channels. Ports are connection points of valve and pipeline and are classified as inlet (where the fluid comes) and outlet (where the fluid goes). The number of ports directly determines the flow path type of the valve, such as the 2-way, 3-way, and 5-way valves, which are the most popular flow path classifications for industrial applications.
2.2 Valve seat and nozzle
The orifice is the flow passage in the valve, and the valve seat is the sealing surface aritifice. If the orifice is blocked, the flow path is closed. If it is open, the fluid passes through easily. Also, the size of the orifice determines the maximum flow rate of the valve, which is the important parameter for selection.
2.3 Plunger (core)
The solenoid coil controls the movement of the movable metal core. It is the only moving part in most direct-acting solenoid valves. The up-and-down movement controls the orifice opening and closing, switching the flow path states.
2.4 Spring Return
The spring moves the plunger to its initial position when the coil is de-energized. The valve's default flow path state (open or closed) is kept in the de-energized state of the valve, which is the basis for the distinction of normally open and normally closed valves.
2.5 Coil solenoid
The power drive element. When it is energized, a magnetic field is generated to attract the plunger and change the flow path. When it is de-energized, the magnetic field is no more existent, and the spring returns the flow path to its initial state.
3. How a Basic Solenoid Valve Flow Path Works (Step-by-step)
All changes of flow paths in solenoid valves are performed according to the simple principle: power on = flow path switch, power off = flow path reset. In order to explain the whole process of flow path functioning, we will use the most common 2-way direct-acting solenoid valve as an example and show two types: normally closed (NC) and normally open (NO).
4. Normally Closed (NC) Solenoid Valve (the Most Common Type)
This type is the most common type of most industrial and home solenoid valves. Its initial flow path is closed when no power is applied.
De-energized state (no power): The coil creates no magnetic force. The spring holds the plunger tightly against the valve seat, sealing the internal orifice. The flow passage between the inlet and outlet is closed, and no fluid passes through the valve.
Energized state (power on): The coil creates a magnetic field overcoming the spring pressure and pulls the plunger upwards and away from the orifice. The blocked flow path is instantly opened, and the fluid freely passes through the orifice from inlet to outlet. When the power is disconnected, the magnetic field disappears instantly, and the spring resets the plunger returning the flow path to its initial state.
5. NC Solenoid Valve (Normally Closed)
The structure and flow path logic of this type is the opposite of NC valves. The default flow path is open when no power is supplied.
de-energized state (no power): The spring keeps the plunger upwards, the orifice is open, and the inlet and outlet flow paths are completely open for fluid to pass.
Energized state (power on): The magnet force pushes the plunger downwards to close the orifice and block the flow path. It is used in saapplications to instantly stop fluid flow whenn the power is turned on.
6. Basic Flow Paths for Solenoid Valves for Beginners
After understanding the basic principles of working, the beginner should learn about the three most popular flow paths depending on the port number, which will cover 95% of daily application tasks.
6.1 2-Way Solenoid Valve (On/Off Control)
It is a pure on/off flow control valve and has no fluid diversion or exhaust functions. It has one inlet and one outlet. The flow path is the simplest – wide open to let fluid pass and wide closed to cut off the flow. It is widely used in water pipes, oil and gas pipelines, and single-channel flow switch control with NC and NO modes.
6.2 3-Way Solenoid Valve (Switching/Fluid Diverter)
It has three ports (inlet, outlet, and exhaust/branch port), and its flow path allows it to switch between two channels. In the default state, the inlet is connected to one channel; after power-on, the flow path is switched to connect the inlet to the other channel, thus performing fluid diversion or channel switching. It is widely used in pneumatic control systems and small hydraulic devices.
6.3 5-Way Solenoid Valve (2-position cylinder control)
It is designed for the control of a five-port, two-set switchable flow path pneumatic actuator. It switches the inlet and exhaust paths to control the forward/reverse motion of the cylinders. It is widely used in robotized pneumatic systems, automation devices, and packaging machines.

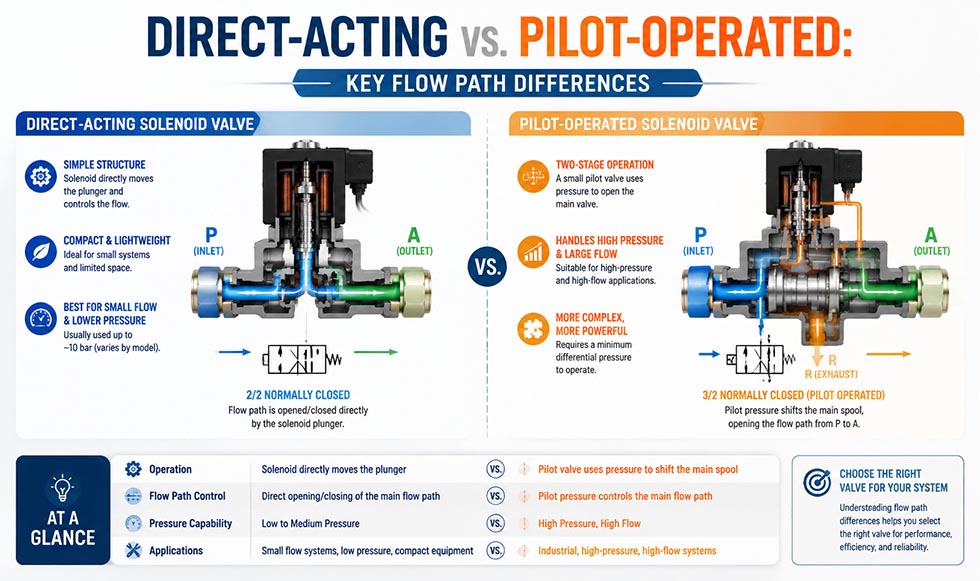

7. Direct Acting vs. Pilot-Operated: Major Difference in Flow Paths

Many beginners skip the driving method, which influences the performance and application limitations of the flow path directly. There are two major types of solenoid valves: direct-acting and pilot-operated. They have different flow path features.
Direct acting solenoid valves: The plunger opens and closes the orifice directly. The flow path is extremely fast (5–50 milliseconds), the construction is simple, and the failure rate is low. However, the orifice is small because of the limitations of electromagnetic force, so it can only be used in low-pressure and low-flow conditions.
Pilot-operated solenoid valves: It uses the secondary control. First the solenoid opens the small pilot passage. The pressure difference in the main valve drives the main passage open/close. High flow, high pressure resistance, suitable for industrial high-pressure large-diameter pipe systems, but a bit slower response speed.
8. Common Flow Path Mistakes & Troubleshooting for Beginners
Most solenoid valve problems come from using the wrong flow path, not from low product quality. Most common mistakes beginners make and their solutions:
8.1 Backwards Pipeline Installation
Each solenoid valve has the arrow marked on the valve body showing the flow direction. The reverse installation will block the flow path, cause poor sealing, or fail to open. Always install pipelines in the direction of the flow arrow.
8.2 NC and NO mode confusion
If the long-term closure is required, the use of the NO valve will cause constant fluid leakage and energy losses. Before selection, check the operating conditions (long-term open/closed) of the system.
8.3 Flow Path Blocked
The orifice and flow channel can easily become blocked by impurities in the fluid, which can cause poor flow or prevent them from closing. For long-term usage, it is recommended to install the filter on the inlet of the pipeline.
9. Conclusion
The flow path is the core of how the solenoid valve operates. The first step for efficient usage of the solenoid valves for beginners is the knowledge of basic flow path structures, working principles, and flow path differences. No matter if it is appliance maintenance, mechanical adjustment, or industrial system design, the knowledge of flow path principles will help you to select, install, and maintain the solenoid valves properly, avoiding most of the beginner issues.
So you can start practicing and observing flow path changes with the simplest 2-way NC/NO valves and will soon have a full picture of all types of solenoid valve control logic.
