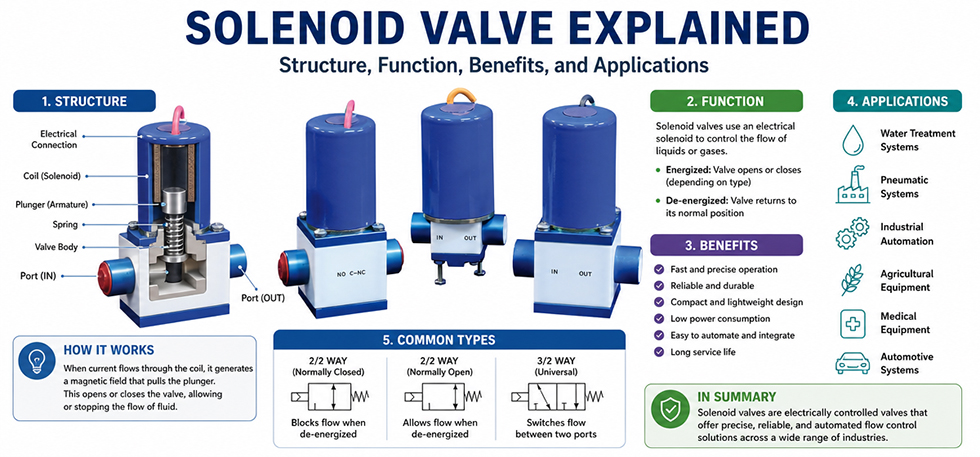

Introduction on Solenoid Valve
Solenoid valve is one of the most widely-used electromagnetic control components of automation systems. It works thanks to the electrical impulse that regulates liquid/gas flow and enables fast and accurate switching.
Solenoid valves are widely applied in many industries – from water treatment equipment, pneumatic systems, and medical devices to automotive systems and industrial machinery. Their compact structure, fast response, and integration capability make solenoid valves popular automatic flow control device choice.
Knowing the structure, working principles, advantages, and applications of the solenoid valve will help you choose the optimal valve solution for your project.
What is a Solenoid Valve?
Solenoid valve is an electrical valve controlled by an electromagnetic solenoid.
Unlike a traditional mechanical valve that needs to be manually opened and closed, a solenoid valve is automatically regulated thanks to electrical impulses coming from a controller, PLC, sensors, or control systems.
When electrical current passes through the solenoid coil, it generates a magnetic field that moves the plunger or armature inside the valve changing its position and thus regulating the flow of fluid.
There are two main parts of a solenoid valve:
Solenoid actuator
Coil
Magnetic core
Plunger/Armature
Spring system
Housing
Valve body
Inlet port
Outlet port
Valve seat
Sealing components
Flow channel
Combination of electromagnetic action and valve control enable fast and accurate switching of a solenoid valve.
How Does a Solenoid Valve Work?
The principle of work of the solenoid valve is based on the electromagnetic force.
There are three stages of operation:
- Electrical Activation
When voltage is applied to the solenoid coil, current passes through the copper windings and produces a magnetic field around the iron core.
The magnetic force pulls the plunger to the magnetic core.
- Mechanical Movement
Mechanical movement of the plunger changes the position of the valve mechanism.
Depending on the type of valve, the plunger can:
Open the flow passage
Close the flow passage
Switch between multiple flow directions
- Fluid Control
After changing the position, the valve controls the flow of fluid.
After removing power, the magnetic field disappears, and the spring resets the plunger to its initial position.
It creates two basic operating modes:
Normally Closed (NC) Solenoid Valve
A solenoid valve that remains closed when power is off.
Opens when energized.
Application of the normally closed solenoid valve:
Water control systems
Fuel systems
Safety shut-off applications
Normally Open (NO) Solenoid Valve
A solenoid valve that remains open when power is off.
Closes when energized.
Application of the normally open solenoid valve:
Cooling systems
Emergency release systems
Industrial process control
Main Components of a Solenoid Valve
The performance of the solenoid valve largely depends on the design of its internal structure and components.
- Solenoid Coil
The coil is an electromagnetic drive component.
The most important parameters of the coil are:
Voltage rating
Resistance
Power consumption
Duty cycle
Insulation class
Temperature resistanc
The most commonly used voltages are:
DC 12V
DC 24V
DC 48V
AC 110V
AC 220
An optimal design of a solenoid coil guarantees stable electromagnetic force and longevity.
- Magnetic Core and Plunger
The magnetic system is responsible for converting electrical energy into mechanical action.
The use of high-quality magnetic materials will increase:
Efficiency of the magnet
Response speed
Holding force
Energy consumption
Also, it is important to pay attention to the surface treatment of the plunger that reduces friction and wear resistance.
- Spring Assembly
The spring provides the restoring force for the plunger after removing power.
The design of the spring affects:
Response time
Reliability of resetting
Operating life
- Valve Body
The valve body serves as the flow channel and sealing construction.
Most common materials of the valve body:
Stainless steel
Brass
Aluminum alloy
Engineering plastic
Selection of the material depends on:
Type of the fluid
Pressure requirements
Temperature
Corrosive environment
Types of Solenoid Valves
Depending on the application, different designs of solenoid valves are needed.
- Direct Acting Solenoid Valve
A direct acting solenoid valve is controlled directly by electromagnetic force.
Advantages:
Quick response
Simple structure
Operates even when there is no pressure
Applications of the direct acting solenoid valve:
Small flow systems
Medical equipment
Laboratory instrumentation
- Pilot Operated Solenoid Valve
A pilot operated solenoid valve uses the flow of fluid for assisting its operation.
Advantages:
Higher flow rates
Suitable for large pipelines
Lower power consumption
Applications of the pilot operated solenoid valve:
Water systems
Industrial equipment
HVAC systems
- Two-Way Solenoid Valve
A two-way solenoid valve has one inlet and one outlet.
It switches simple on/off flow.
Applications of the two-way solenoid valve:
Air control
Water control
Gas systems
- Three-Way and Four-Way Solenoid Valves
Multiport solenoid valve controls the direction of multiple flows.
Applications of the multiport solenoid valve:
Pneumatic cylinders
Automation equipment
Robotics system
Advantages of Using the Solenoid Valve
- Fast Response Time
A solenoid valve can operate very quickly – usually, it takes just a fraction of a second.
It makes it perfect for automation systems requiring precise timing control.
- Compact Design
Comparing with traditional mechanical valves, a solenoid valve is more compact and lightweight.
It is optimal for:
Compact machines
Portable equipment
Limited space applications
- Automatic Control
A solenoid valve can be easily integrated with:
PLC controllers
Sensors
Microcontrollers
Industries automation systems
It improves the efficiency of production and minimizes manual operation.
- High Reliability
With optimal design and suitable working conditions, a solenoid valve can have millions of operating cycles.
Optimal design and materials will increase the reliability of the valve.
- Energy Efficiency
The latest solenoid valve designs are developed to minimize power consumption without decreasing the force output.
Applications of Solenoid Valves in Industrial Sector
- Industrial Automation
Solenoid valves are widely used in automatic machines for controlling:
Compressed air
Hydraulic systems
Cooling systems
Lubrication systems
- Pneumatic Equipment
In pneumatic automation, solenoid valves are used for controlling air flow and controlling the operation of:
Cylinders
Actuators
Grippers
Robots
- Medical Equipment
Medical devices require precise and reliable regulation of liquid flow
Applications of the medical equipment solenoid valves:
Ventilators
Diagnostic equipment
Oxygen systems
Medical pumps
- Automotive Industry
Solenoid valves are used in:
Fuel injection systems
Transmission control
Braking systems
Emission control systems
- Water Treatment Systems
Solenoid valves regulate:
Water supply
Filtration systems
Irrigation equipment
Cleaning machines
- Household Appliances
Common applications include:
Washing machines
Coffee machines
Water dispensers
Dishwashers
Selection of Solenoid Valve
Selection of the optimal solenoid valve requires paying attention to several important aspects
- Fluid Type
Determine what kind of medium needs to be regulated:
Water
Air
Gas
Oil
Chemical fluids
Different types of fluids require different materials and design of the valve.
- Operating Pressure
Determine:
Minimum pressure
Maximum pressure
Operating pressure range
- Voltage Requirement
Determine the power supply:
DC voltage
AC voltage
Power consumption
- Flow Rate
The valve needs to have appropriate size for the flow rate requirement.
If the valve is too small, it will limit the flow; if the valve is too big – it will increase the costs.
- Duty Cycle
Determine how often the valve will operate.
If it operates continuously, the coil needs to be designed for high duty cycles.

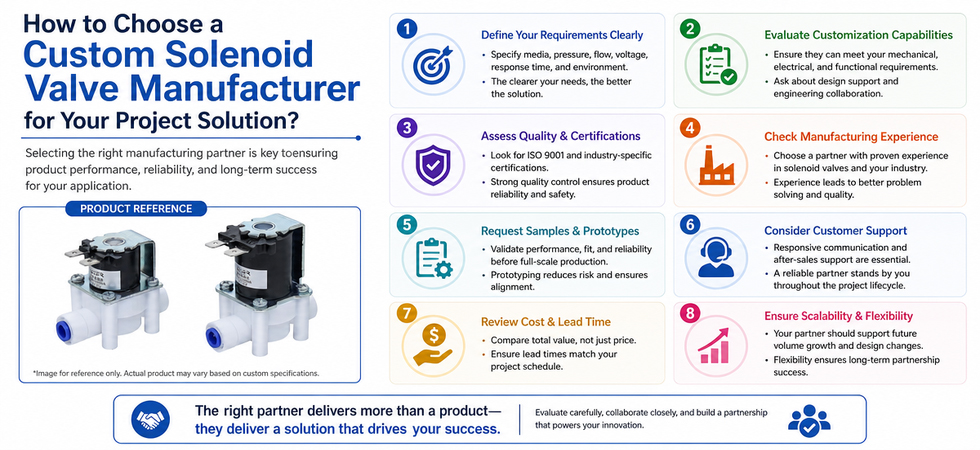

How to Choose the Right Custom Solenoid Valve Manufacturer for Your Project Solution?
Selection of the optimal custom solenoid valve manufacturer is one of the crucial decisions for engineers, product developers, and purchasers. An optimal manufacturing partner will help to implement all application requirements in a reliable valve solution with optimal performance, long service life, and low costs.
Comparing with standard solenoid valves, customization process involves more in-depth technical collaboration, starting with the design and ending with production support. Thus, the choice of the right manufacturer is critical for the successful implementation of your project.
- Evaluate Engineering Capability of the Manufacturer
The first step in the choice of the custom solenoid valve manufacturer is to check its engineering experience and capabilities.
An optimal manufacturer should be able to support:
- Solenoid coil design
- Magnetic circuit optimization
- Valve structure development
- Fluid flow analysis
- Material selection
- Prototype development
- Performance improvement
An engineering team with extensive experience can analyze your requirements regarding voltage, pressure, flow rate, response time, working temperature, and duty cycle and recommend the best suitable solenoid valve design.
- Check Manufacturing Capability
A reliable custom solenoid valve manufacturer should have full manufacturing capabilities instead of relying on external suppliers.
Important production capabilities include:
- Precision machining
- Metal stamping
- Plastic injection molding
- Coil winding
- Assembly lines
- Automatic testing equipment
- Quality inspection systems
Having several production processes in-house will allow increasing quality control, reducing development time, and ensuring consistency during mass production.
- Check Previous Customization Projects and Industry Experience
Experience is one of the most important criteria in the choice of a manufacturing partner.
Ask the manufacturer about the experience in customization of projects for:
- Industrial automation
- Medical equipment
- Automotive systems
- Pneumatic equipment
- Water control systems
- Special fluids applications
Manufacturer with relevant industry experience will understand the challenges of the application and develop optimal solutions basing on practical engineering experience.
- Confirm Prototype and Testing Services
Custom solenoid valve development process usually involves several design iterations before mass production.
An optimal manufacturing partner should provide:
- Prototype manufacturing
- Sample testing
- Performance report
- Life cycle testing
- Temperature testing
- Leakage testing
- Response time testing
Data from the tests will guarantee that your solenoid valve will meet your technical requirements before moving on mass production.
- Check Quality Control Standards
Quality is one of the most important aspects in solenoid valves since they are often working continuously in the industrial environment.
An optimal manufacturer should have stringent quality control procedures, including:
- Incoming material inspection
- Coil resistance testing
- Magnetic force testing
- Pressure testing
- Flow testing
- Final performance inspection
Also, quality certifications like ISO quality management system prove the stability and reliability of production process.
- Evaluate Communication and Technical Support
The successful implementation of the custom project requires good communication between customer and manufacturer.
An optimal supplier should provide:
- Quick technical feedback
- Clear drawings and specifications
- Engineering recommendations
- Development updates
- Production schedul
An experienced manufacturer that understands your project requirements can help to avoid possible design mistakes and reduce development costs.
- Consider Long-Term Partnership Opportunities
The best custom solenoid valve manufacturer is not only a supplier but also a technical partner.
Before making your choice, consider:
- Manufacturing capacity
- Reliability of deliveries
- Cost efficiency
- Ability to continuous improvement
- After-sales support
Long-term partnership will guarantee better optimization of the product, reliable supply, and fast response to your future projects.
Frequently Asked Questions (FAQs) About Solenoid Valves
- What is a solenoid valve used for?
Solenoid valve is used for automatic controlling of the flow of liquids or gases by means of the electromagnetic coil. With the electrical power application, the coil creates magnetic field that moves the plunger inside the valve opening or closing it.
The main applications of the solenoid valves include:
Water control systems
Pneumatic equipment
Medical devices
Automotive systems
Industrial automation machines
HVAC and refrigeration systems
Solenoid valves are popular because of fast response, reliable operation, and easy integration with electronic control systems.
- How does a solenoid valve work?
Solenoid valve works on the basis of converting the electrical energy into mechanical action using electromagnetic force.
When voltage is supplied to the coil, magnetic field is created and pulls the plunger or armature inside the valve changing its position and thus regulating fluid flow.
When the power is turned off, the magnetic field disappears, and a spring resets the plunger to its original position.
Basic process of the solenoid valve operation includes:
Electrical activation of the coil
Creation of the magnetic field
Plunger movement
Opening or closing the fluid passage
- What are the main types of solenoid valves?
The main types of the solenoid valves are:
Direct acting solenoid valve: uses electromagnetic force to control the valve; suitable for low flow and pressure applications.
Pilot operated solenoid valve: uses the flow of fluid to assist operation and is suitable for larger flow systems.
Two-way solenoid valve: controls simple on/off flow with one inlet and one outlet.
Three-way and four-way solenoid valves: control multiple flow paths and are commonly used in pneumatic automation.
The correct type of valve depends on the fluid, pressure, flow rate, and other application requirements.
- What is the difference between normally closed and normally open solenoid valves?
The difference is the state of the valve without electrical power.
Normally Closed (NC) Solenoid Valve
Valve remains closed without power.
Opens when energized.
Commonly used for safety shut-off applications.
Normally Open (NO) Solenoid Valve
Valve remains open without power.
Closes when energized.
Used in systems that need continuous flow unless power is applied.
The choice between NC and NO solenoid valve depends on the safety requirements and conditions of operation of the application.
- How long does a solenoid valve last?
The lifetime of the solenoid valve depends on:
Operating frequency
Voltage stability
Fluid quality
Working temperature
Material selection
Coil design
Sealing performance
An optimal industrial solenoid valve can last for hundreds of thousands or even millions of switching cycles in suitable conditions.
Regular maintenance and appropriate application selection can significantly increase service life.
- What factors should be considered when selecting a solenoid valve?
When selecting a solenoid valve, engineers should take into account:
Fluid type (water, air, gas, oil, chemical fluid)
Operating pressure range
Flow rate requirement
Valve size
Voltage specification
Power consumption
Response time
Duty cycle
Temperature environment
Sealing material compatibility
Selection of correct specifications ensures optimal performance and prevents premature failures.
- Can a solenoid valve control both liquids and gases?
Yes, a solenoid valve can control both liquids and gases, but the valve design and material should correspond to the application.
For example:
Water solenoid valve should use corrosion-resistant materials and suitable seals.
Gas solenoid valve should use suitable seals and certification.
Oil control applications should use oil-resistant sealing materials.
Usage of incorrect valve may lead to the leakage, poor performance, or damage of the system.
- Why choose a custom solenoid valve instead of a standard one?
Custom solenoid valve is required when standard products do not meet certain application requirements.
With the custom valve solution, you can optimize:
Coil voltage and power
Magnetic force
Stroke distance
Valve size
Pressure rating
Connector design
Material selection
Response time
Environment of operation
Custom solenoid valves are especially important for the industries such as medical equipment, industrial automation, robotics, automotive systems, and specialized machinery where reliability and performance are crucial.
Conclusion
Solenoid valve is a crucial electromagnetic control component that provides effective and reliable management of liquids and gases in many industries. Converting the electrical energy into mechanical action, it enables automatic flow control with high precision.
Understanding the structure, working principle, advantages, and applications of the solenoid valve will help you to choose the best solution for your project.
In automation systems, medical devices, automotive systems, and industrial machinery, the properly designed solenoid valve can help to improve performance, reliability, and efficiency.
For special applications, cooperation with experienced solenoid valve manufacturer will help to meet the requirements for the force, pressure, durability, and environmental conditions.
I
